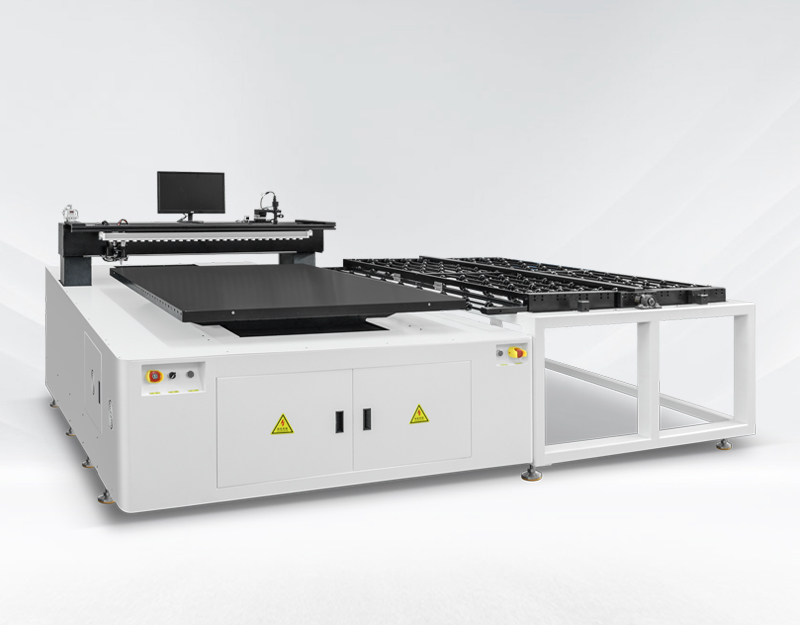

Single knife special- -shaped glass cutting machine

HXL-YX-1312Z

Characteristic
This equipment is TP, black and white LCD, TFT, 3D lens high- precision glass substrate cutting special equipment, this equipment has a high degree of automation, with automatic CCD alignment, automatic cutting, automatic finding cutting zero and adjust the cutting depth according to the seting; The cuting motion is stable, the vibration is small, the speed is high; Can achieve square, rectangular, circular, iregular graphics cutting. The equipment adopts industrial computer as the main control system, which has strong anti-interference ability and low failure rate.
Pre Sales Consultation:0755-23282859
After Sales Consultation: 135 1024 0189
Email: denxianjin163@163.com
Product Introduction

Outline

1. This equipment is TP, black and white LCD, TFT, 3D lens high-precision glass substrate cutting special equipment, this equipment has a high degree of automation, with automatic CCD alignment, automatic cutting, automatic finding cutting zero and adjust the cutting depth according to the setting; The cutting motion is stable, the vibration is small, the speed is high; Can achieve square, rectangular, circular, iregular graphics cutting. The equipment adopts industrial computer as the main control system, which has strong anti-interference ability and low failure rate.
   2. Visual automatic alignment system, automatic tool depth (tool adjustment) device,automatically change the pressure of each cutting line according to the setting.
   3. The arrangement of the cutting line should fllw:
   ①The spacing between the cutting lie and the cutting lie should be greater than 2 to 3 times the thickness of the cut glass.
   ②The Angle between the tangent lines is preferably 90土15 degrees.
   ③Concave cutting to leave a good glass fragment exit open space, generally need to be .more than 30° open.
   ④Convex radius thickness below 0.5mm R≥3mm, thickness above 0.5mm R≥5mm,products that meet these conditions will get good results.
   4. The cutting position, conditions, MAKE of the alignment and cutting pressure of theglass can be read and saved.
   5. Program input: CAD graphics import. The graphics are stored in the computer hard disk,and can be imported through the network cable or USB interface (CAD graphics file data import, the company only calls CAD DXF format files; CAD design software and editing
   require user professionals to complete)


Equipment composition

The machine is composed of high precision mechanical workpiece and natural marble,electrical control system, optical system, gas path system and independent software system.


Application
Application Area
Solar Energy
Electronic Paper
Intelligent Wearing
3C Digital
Medical Treatment
Aerospace
Vehicle Display
Detailed Parameters

Parameters of single knife special- -shaped glass cutting machine


Name

Model number

Length*width*height

Single knife special-shaped glass cutting machine

HXL-YX-1312Z

2500mm*1900mm*1800mm

Table height

Power

Approximate weight

900mm±50mm

AC 220V,(Monophase),50/60Hz,4.5KW

3.0T


Technical characteristics of machine

Maximum glass size

Glass thickness

Platform flatness(mm)

1300*1200mm

0.15mm-1.1mm(Bonded glass)
                   (Single-layer glass thickness less than 0.15mm
                   need to be divided into small pieces, 0.2 and less
                   than 7 inches of products are not recommended)

±25μm Cutter head relative to working platform

Direction(tool holder straightness)

Direction(platform straightness)

Precision of cutting glass

±15μm

±15μm

Straight line±0.035 Roundness±0.055(R>20mm)

Cutter wheel compression

Scribing direction

Tool wheel lifting and depth control

Atmospheric pressure

360-degree rotation of the tool head is controllable

Servo motor, screw

Tool head rotation

Pressure adjustment mode

Tool origin detection

Servo motor

Voltage proportional valve

Auto

X- Feed drive

Y-axis feed drive

X- Maximum travel

Linear motor

Linear motor

Maximum dimensions of the same platform (mm)

Z-axis feed drive

Positioning device

Maximum travel for optical positioning

Servo motor

Auto

Maximum dimensions of the same platform(mm)

Job positioning mode

Data import mode

Power source

Optical automatic alignment

CAD direct import

AC 220V,(Monophase),50/60Hz,4.5KW


Characteristics and origin of key components

Air cylinder

SMC

Japan

Control computer

Industrial computer

China

The tool head drives the motor

Servo motor

Japan

Y platform, X tool holder drive motor

Linear motor

China

Positioning screw, guide rail

HIWIN

China (Taiwan)

CCD Camera

MKC-D130U

MKC Custom

Lens

MKC-MF150EX

MKC Custom

Electric pressure proportioning valve

SMC

Japan
