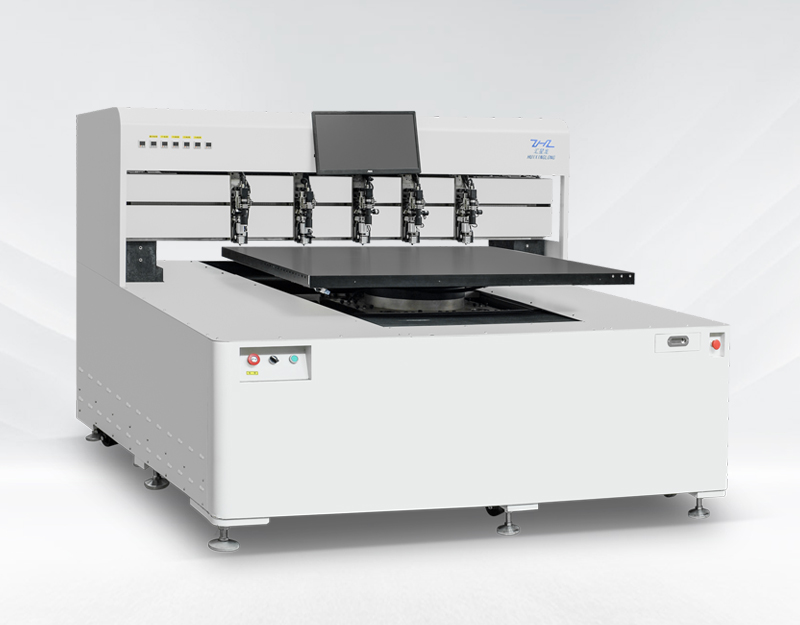

HXL-TFT5Z-1312C
Outline
1. This equipment is TP, black and white LCD, TFT, 3D lens high-precision glass substrate cutting special equipment, this equipment has a high degree of automation, with automatic CCD alignment, automatic cutting, automatic finding cutting zero and adjust the cutting depth according to the setting; The cutting motion is stable, the vibration is small, the speed is high; Can achieve square, rectangular, circular, iregular graphics cutting. The equipment adopts industrial computer as the main control system, which has strong anti-interference ability and low failure rate.
2. Visual automatic alignment system, automatic tool depth (tool adjustment) device,automatically change the pressure of each cutting line according to the setting.
3. The arrangement of the cutting line should fllw:
①The spacing between the cutting lie and the cutting lie should be greater than 2 to 3 times the thickness of the cut glass.
②The Angle between the tangent lines is preferably 90土15 degrees.
③Concave cutting to leave a good glass fragment exit open space, generally need to be .more than 30° open.
④Convex radius thickness below 0.5mm R≥3mm, thickness above 0.5mm R≥5mm,products that meet these conditions will get good results.
4. The cutting position, conditions, MAKE of the alignment and cutting pressure of theglass can be read and saved.
5. Program input: CAD graphics import. The graphics are stored in the computer hard disk,and can be imported through the network cable or USB interface (CAD graphics file data import, the company only calls CAD DXF format files; CAD design software and editing
require user professionals to complete)
Equipment composition
The machine is composed of high precision mechanical workpiece and natural marble,electrical control system, optical system, gas path system and independent software system.
Full vision alignment five blade cutting machine parameters
Name | Model number | Length*width*height |
Full vision counterpoint five knife cutting | HXL-TFT5Z-1312C | 2700mm*2250mm*1700mm |
able height | Power | Approximate weight |
900mm±50mm | AC380V/60hz，L*Φ4，13KW | 3.5T |
Technical characteristics of machine
Tool number selection function | Cutting control | And tool head synchronization |
Five knives can be switched at will | The motor drive screw accurately controls | The CCD follows the tool head to monitor the |
Cut size(mm) | Flatness of the platform(mm) | Cutting thickness of veneer (mm) |
1300*1200 | ≤±0.05 | 0.15-1.1mm |
Cutting pressure mode | Carrier moving mode | Tool wheel travel setting |
Motor+low friction cylinder | Linear motor | Settable |
Knife wheel travel warning | Depth of cut(mm) | Cutting mode |
Interface text prompt | 0.001-0.300 | Motor+ball guide screw |
Tool holder spacing(mm) | Tool depth/pressure setting | Counterpoint system |
<85<> | Each knife can be set | Visual automatic counterpoint |
Characteristics and origin of key components
Air cylinder | SMC | Japan |
Control computer | Industrial computer | China |
The tool head drives the motor | Ressay | China |
Y Platform drive motor | Linear motor | China |
X Tool holder drive motor | Linear motor | China |
Positioning screw, guide rail | HIWIN | China (Taiwan) |
CCD Camera | MKC-D130U | MKC Custom |
Lens | MKC-MF150EX | MKC Custom |
Electric pressure proportioning valve | SMC | Japan |
