Full vision counterpoint four knife cutting machine

Product Introduction

outline

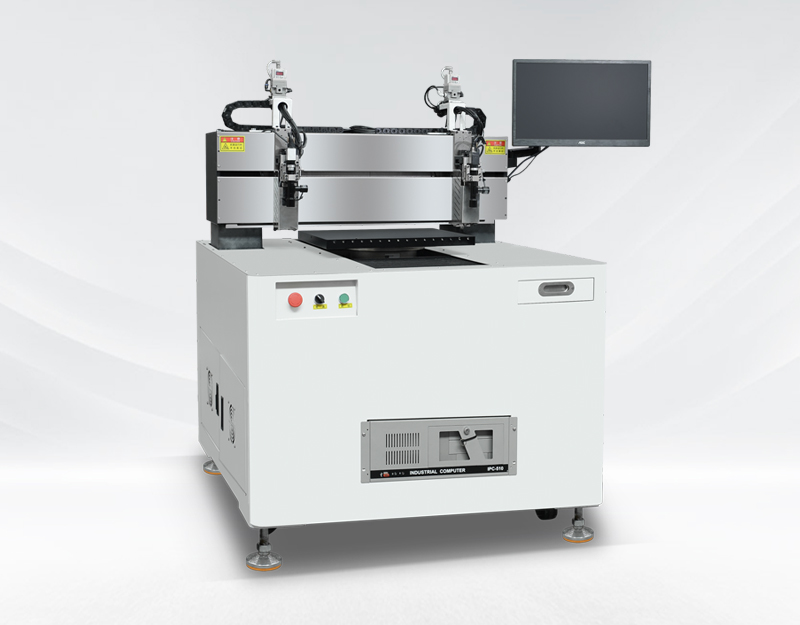

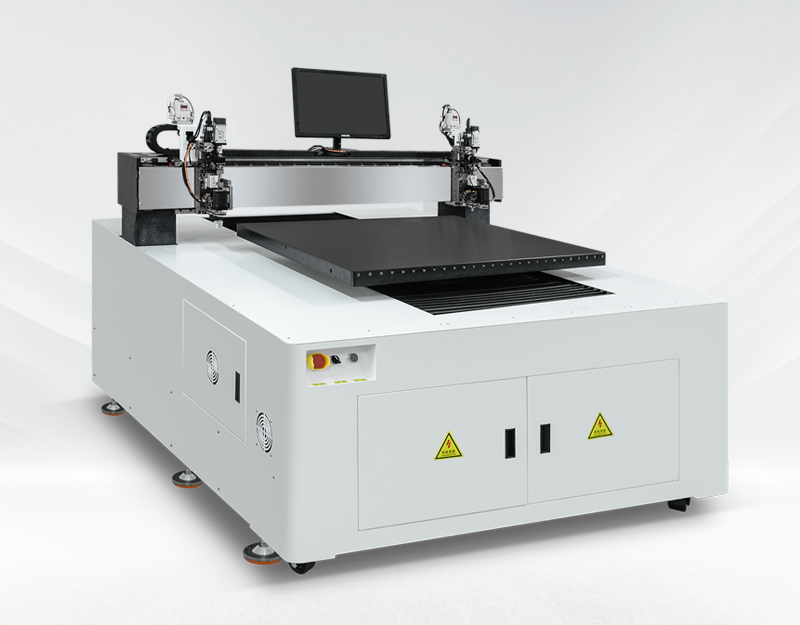

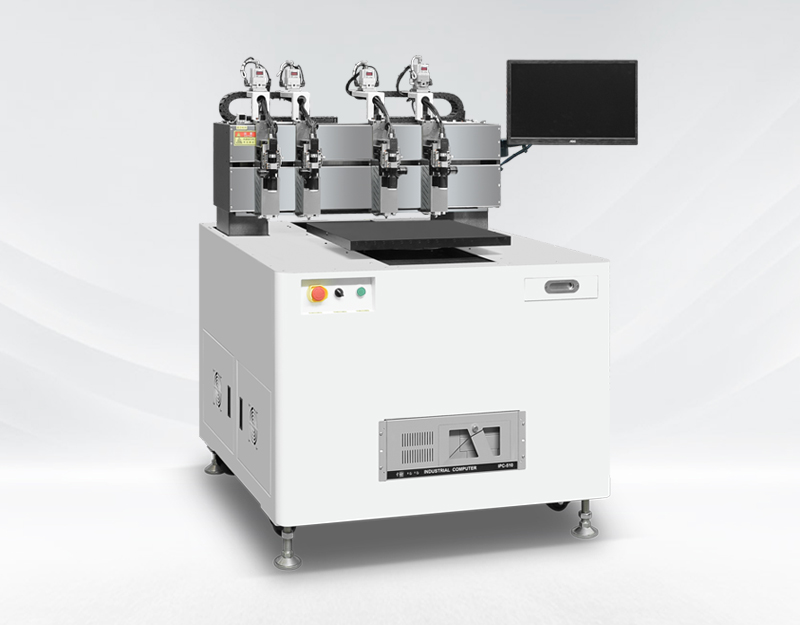

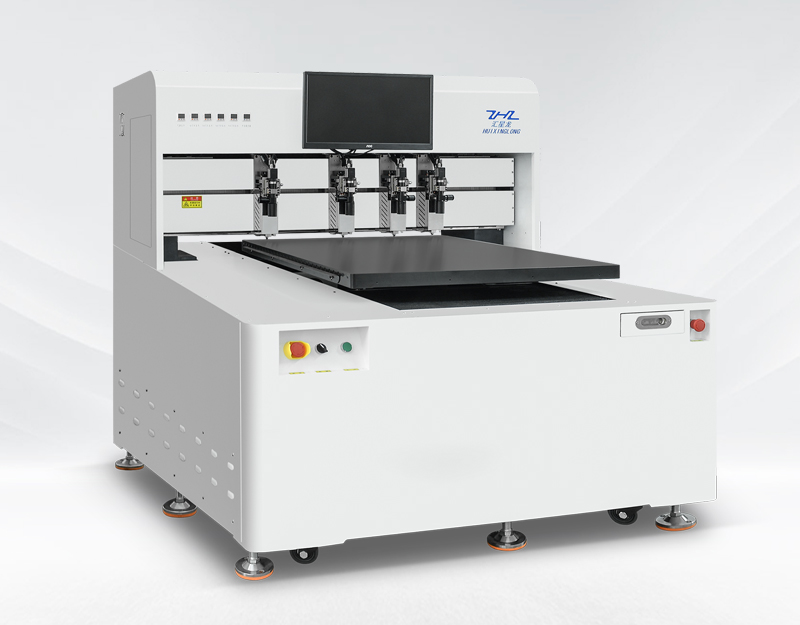

The HXL-TFT4Z-9585 four blade glass cutting machine is a specialized equipment for high-precision marking and cutting of TFT and other liquid crystal glass. This cutting machine is a four blade linear glass cutting

machine

Cutting machine, glass loading and unloading are manually completed. Glass positioning adopts two sets of optical vision systems for automatic alignment and vacuum adsorption fixation. The workbench can complete 0 degree and 90 degree rotation, and the tool head components are driven up and down by motors and screw rods. Independent four CNC movable CCD alignment system.

control system

Automatic visual capture alignment, cutting according to size control, and the cutting depth pressure of each tangent can be adjusted.

Equipment composition

The machine is composed of mechanical systems, electrical control systems, optical systems, pneumatic systems, and Huixinglong's independent software systems.

Application

Application Area: Solar Energy; Electronic Paper; Intelligent Wearing; 3C Digital; Medical Treatment; Aerospace; Vehicle Display

Detailed Parameters

Full vision counterpoint four knife cutting machine

Name	Model number	Lengthwidthheight
Full vision counterpoint four knife cutting machine	HXL-TFT4Z-9585	1900mm1600mm1600mm
Table height	Power	Approximate weight
900mm±50mm	AC 220V，(Monophase)，50/60Hz，4.5KW	2.2T

Technical characteristics of machine

Tool number selection function	Cutting control	And tool head synchronization
Four knives can be arbitrarily switched between use and shielding	The motor drive accurately controls the amount of cut	The CCD follows the tool head to monitor the quality of the cutting line in real time
Cut size(mm)	Flatness of the platform(mm)	Cutting thickness of veneer (mm)
950*850	≤±0.025	0.15-1.1mm
Cutting pressure mode	Carrier moving mode	Cutter holder
Motor+low friction cylinder	Linear servomotor	Four
Tangential accuracy(mm)	Tool wheel specification DTH(mm)	Tool wheel travel setting
≤±0.022	2.0X0.8X0.65	Settable
Knife wheel travel warning	Depth of cut(mm)	Cutting mode
Interface text prompt	0.005-0.300	Motor+ball guide screw
Tool holder spacing(mm)	Tool depth setting	Pressure setting
<85	Each knife can be set	Each knife can be set
Counterpoint system	Model memory (group)	Control system
Visual automatic counterpoint	1000	PC interface

Characteristics and origin of key components

Air cylinder	SMC	Japan
Control computer	Industrial computer	China
The tool head drives the motor	Ressay	China
Y Platform drive motor	Linear servo motor system	Hoengcheon
X Tool holder drive motor	Linear servo motor system	Hoengcheon
Platform rotating machine	DDMD	Hoengcheon
Positioning screw, guide rail	HIWIN	China (Taiwan)
CCD Camera	MKC-D130U	MKC Custom
Lens	MKC-MF150EX	MKC Custom
Electric pressure proportioning valve	SMC	Japan
