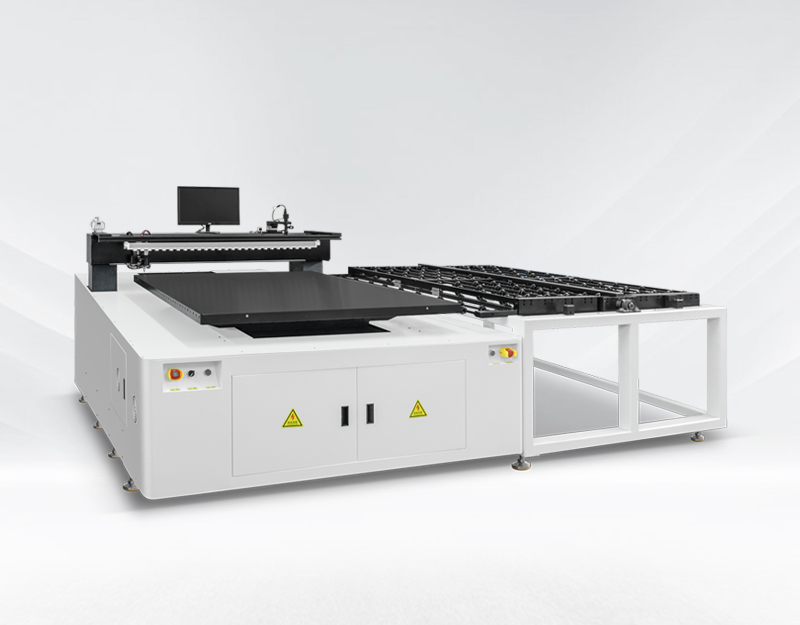

HXL-YX-9585Z
Outline
1. This equipment is TP, black and white LCD, TFT, 3D lens high-precision glass substrate cutting special equipment, this equipment has a high degree of automation, with automatic CCD alignment, automatic cutting, automatic finding cutting zero and adjust the cutting
depth according to the stting; The cutting motion is stable, the vibration is small, the speed is high; Can achieve square, rectangular, circular, iregular graphics cutting. The equipment adopts industrial computer as the main control system, which has strong anti-
interference ability and low failure rate.
2. Visual automatic alignment system, automatic tool depth (tool adjustment) device,automatially change the pressure of each cuting line according to the sttng.
3. The arangement of the cuting line should fol low.
①The spacing between the cutting line and the cutting line should be greater than 2 to 3 times the thickness of the cut glass.
②The Angle between the tangent lines is preferably 90 t 15 degreese.
③Concave cutting to leave a good glass fragment exit open space, generaly need to be more than 30° open.
④Convex radius thickness below 0.5mm R≥3mm, thickness above 0.5mm R≥5mm,products that meet these conditions wil get good results.
4. The cutting position, conditions, MAKE of the alignment and cuting pressure of the glass can be read and saved.
5. Program input: CAD graphics impot. The graphics are stored in the computer hard disk,and can be imported through the network cable or USB interface (CAD graphics file data import, the company only als CAD DXF fomat files;, CAD design software and editing
require user professionals to complete)
Equipment composition
The machine is composed of high precision mechanical workpiece and natural marble,electrical control system, optical system, gas path system and independent software system.
Parameters of single knife special- -shaped glass cutting machine
Name | Model number | Length*width*height |
Single knife special-shaped glass cutting machine | HXL-YX-9585Z | 1900mm*1500mm*1600mm |
Table height | Power | Approximate weight |
900mm±50mm | AC 220V，(Monophase)，50/60Hz，3.5KW | 2.0T |
Technical characteristics of machine
Maximum glass size | Glass thickness | Platform flatness(mm) |
950*850mm | 0.15mm-1.1mm(Bonded glass) | ±25μm Cutter head relative to working platform |
Direction(tool holder straightness) | Direction(platform straightness) | Vertical in the X-Y direction |
±15μm | ±15μm | ±15μm |
Cutter wheel compression | Scribing direction | Tool wheel lifting and depth control |
Atmospheric pressure | 360-degree rotation of the tool head is controllable | Servo motor, screw |
Tool head rotation | Pressure adjustment mode | Tool origin detection |
Servo motor | Voltage proportional valve | Auto |
Tool pressure adjustment | X- Feed drive | X- Maximum travel |
The cutter head air pressure is adjusted by the pressure valve | Linear motor | Maximum dimensions of the same platform (mm) |
Y-axis feed drive | Y-axis maximum travel | Z-axis feed drive |
Linear motor | Maximum dimensions of the same platform(mm) | Servo motor |
Z-axis maximum travel | Z-axis feed speed | Positioning device |
10mm | Max. 60mm／s | Auto |
Data import mode | Cutter wheel material and shape | Wheel blade size |
CAD direct import | Super hard hob | 2.0(Outside diameter)*0.8(Inside |
Characteristics and origin of key components
Air cylinder | SMC | Japan |
Control computer | Industrial computer | China |
The tool head drives the motor | Panasonic servo | Japan |
Y platform, X tool holder drive motor | Linear motor | China |
Positioning screw, guide rail | HIWIN | China (Taiwan) |
CCD Camera | MKC-D130U | MKC Custom |
Lens | MKC-MF150EX | MKC Custom |
Electric pressure proportioning valve | SMC | Japan |
